The Steinway & Sons P100 is equipped with the advanced technologies for which Steinway Lyngdorf is known, including RoomPerfect™ and fully digital signal processing. P100 supports all video resolutions up to 600MHz pixel clock, including 4K with the new high dynamic range formats. With the built-in media player, the P100 is ideal as a media center for smaller installations.
Full support of every audio format
The P100 offers full support of every audio format on the market, including immersive surround sound such as Dolby Atmos®, DTS:X, and Auro-3D®, and it can intelligently optimize the received audio formats to your speaker setup. A total of 10 channels can be decoded by the P100, and it supports up to 256 speakers through the Steinway Lyngdorf Digital Link.
Decoding: Dolby® Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, Auro-3D®, 10 channels
Post processing: Dolby Surround, Auro-Matic®, DTS Neural:x, DTS NEO:X

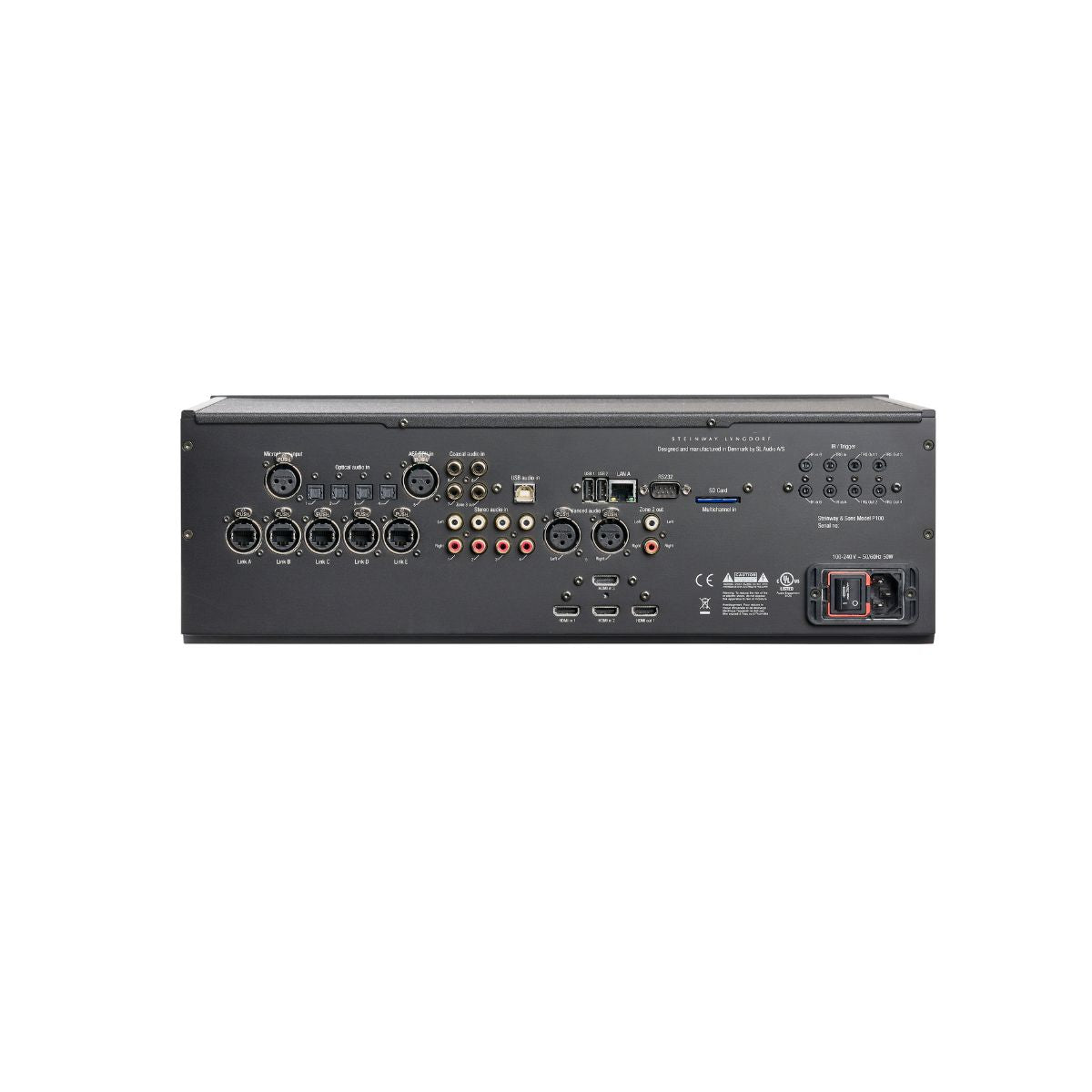

Inputs: Audio: 1 x AES/EBU S/P-DIF input, 3 x S/P-DIF coaxial inputs, 4 x S/P-DIF optical inputs, 1 x USB audio input (≤192kHz/32bit), 1 x balanced stereo analog input (XLR), 4 x single ended stereo analog inputs (RCA), 1 x multichannel single ended analog input (RCA), 1 x microphone input (XLR – Video: 3 x HDMI™
Outputs: Audio: 5 x Steinway Lyngdorf Digital Links (CAT 5e based), 1 x single ended stereo analog output for secondary audio output, 1 x SPDIF coax digital out- put, 1 x HDMI™ – Video: 1 x HDMI™ – ARC compatible
Miscellaneous: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x Trigger input, 4 x Trigger outputs, 1 x RJ45 Ethernet LAN connector, 2 x USB connectors, 1 x SD card slot (storage for system software)
Interface options: RS232, Ip, Web interface, Ihiji, Remote Control App on iOS and Android platforms
Mediaplayer: Internet radio (vTuner), Spotify connect, DLNA Support of FAT32 based media storage (see DLNA formats here), AirPlay, Roon Ready
Control interfaces: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB connectors, 1 x SD card slot (Backup – storage for system software and settings)
Placement options: Rack mount or freestanding
Dimensions (H x W x D): 14.0 x 45.0 x 35.9 cm / 5.51 x 17.7 x 14.1 in
Weight: 6.6 kg / 14.6 lb
