1 Year Local Warranty.

Any mention of "us," "we," "our," etc is by Faith Audio Labs, not AV One.

Specifications

Driver: 10.2mm Full-Range Dynamic Driver with Passive Radiator

Diaphragm: 80+ Layer Dual-Sided Titanium Sputtered

Magnet: Dual Neodymium (9000 Gauss Flux)

Housing: CNC Aerospace-Grade Titanium Alloy

Frequency Response: 20Hz – 20kHz (±1dB)

Sensitivity: 115dB @ 1kHz

Impedance: 45Ω

Cable: 1.5m, 4-Core High-Purity OFC, 4.4mm Balanced

Design Philosophy

The E1000 challenges the boundaries of portable audio by introducing the philosophy of "Near Field Speakers" into an IEM. We treat the acoustic chamber as a room and the driver as a speaker, allowing natural airflow and cavity coupling. The result is the scale, dynamics, and density of a grand system, encapsulated in titanium.

Craftsmanship

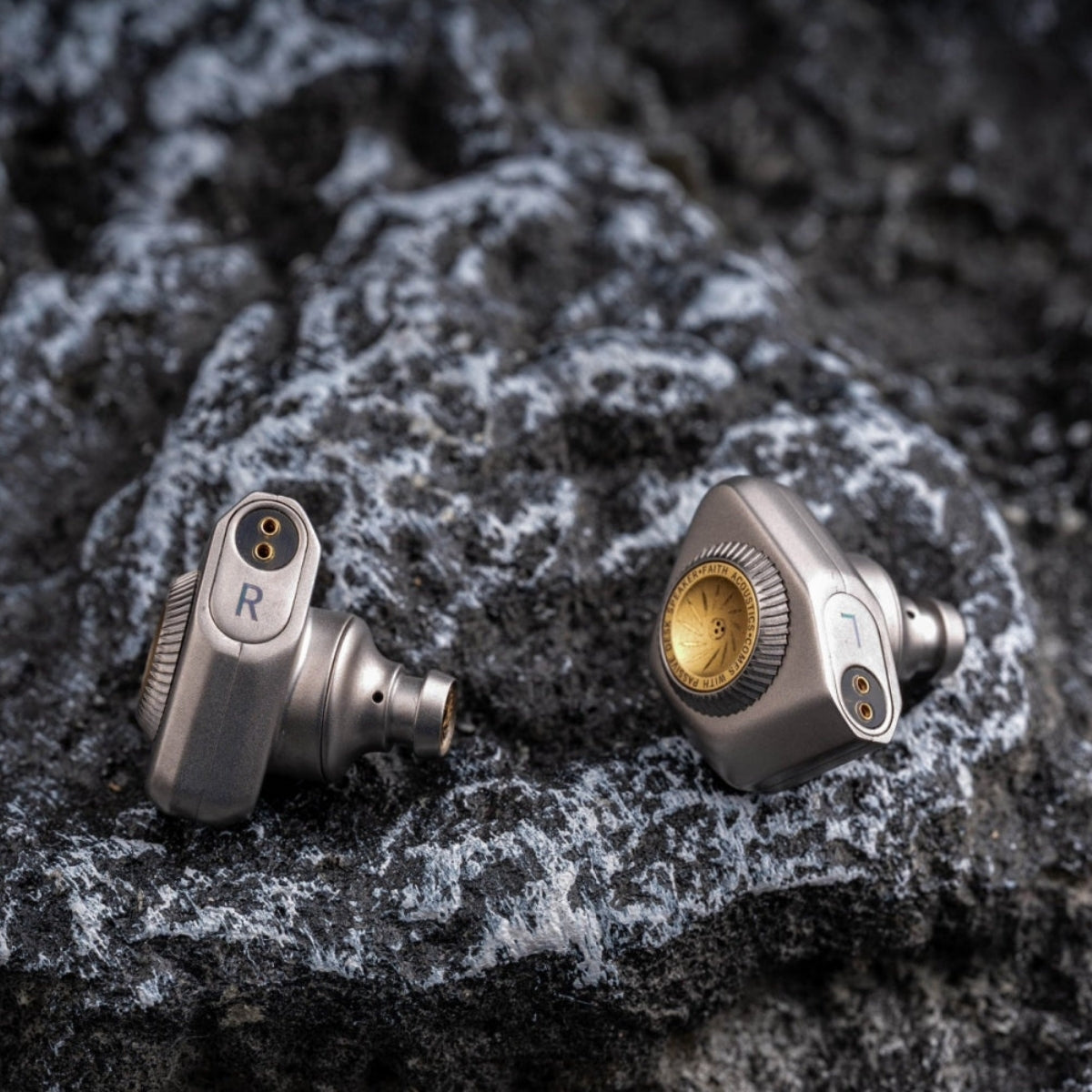

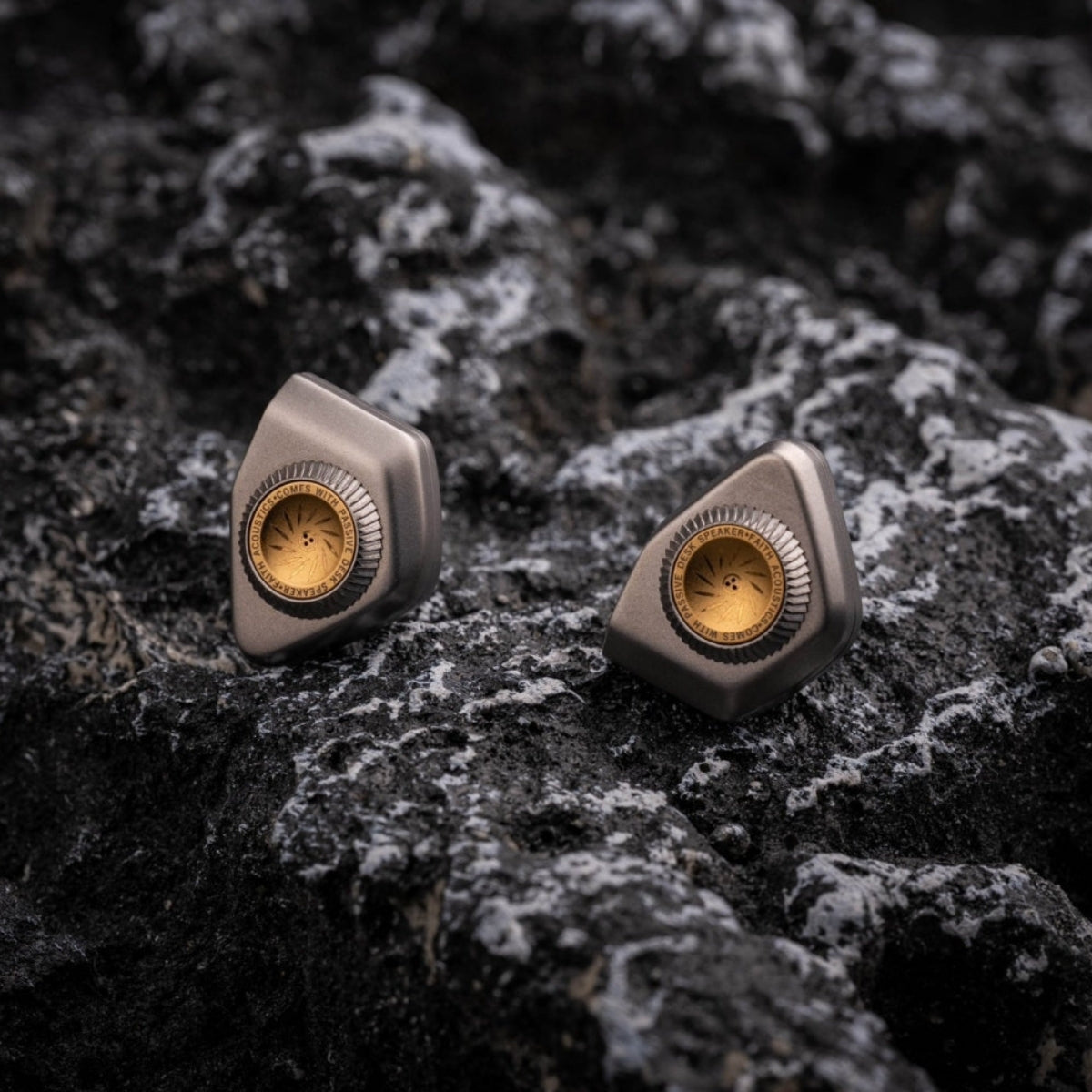

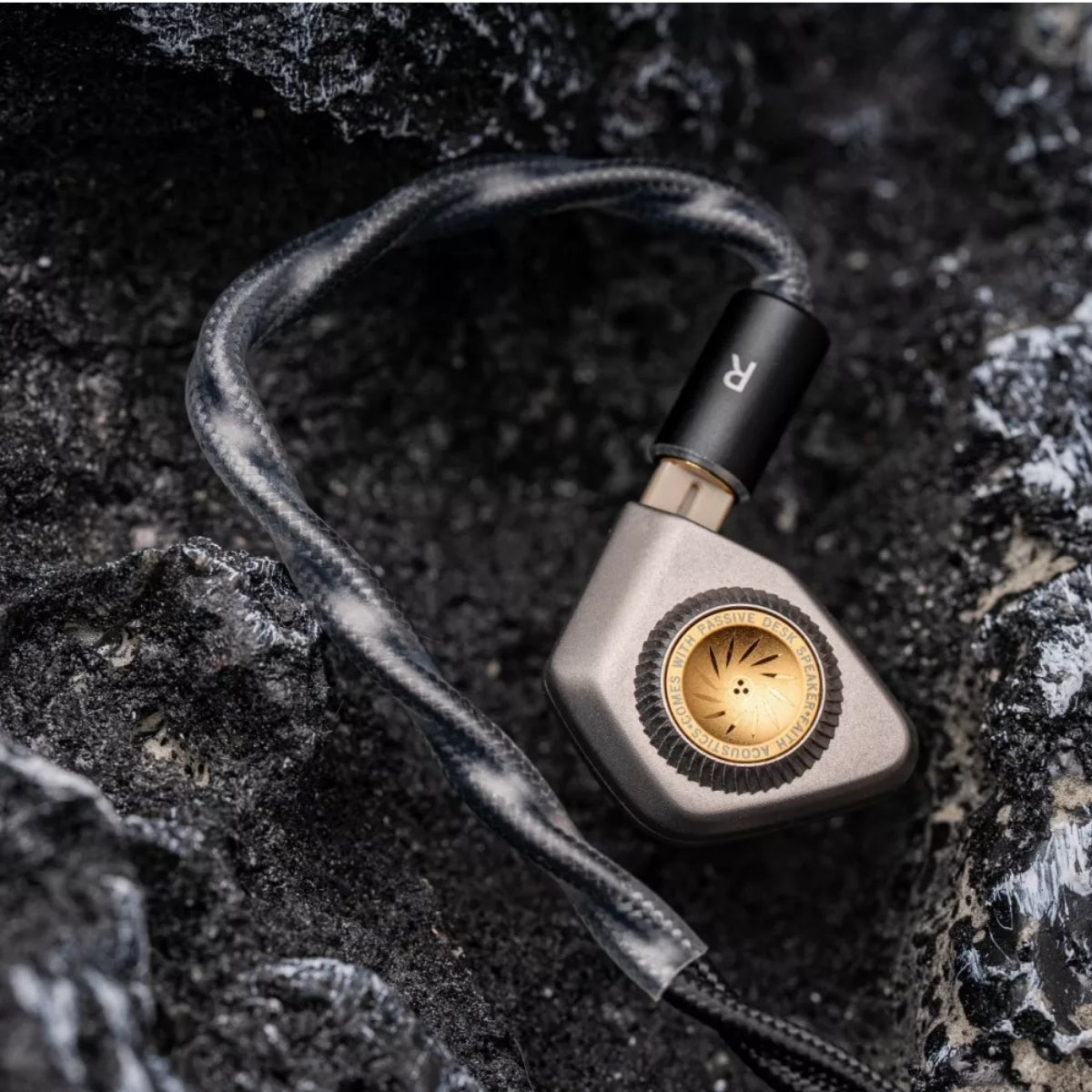

The chassis is CNC-milled from a solid block of titanium alloy, featuring a micro-matte finish that diffuses light with a warm, restrained glow. The faceplate mirrors the precision of haute horlogerie—a concave copper-gold element surrounded by stereo-cut guilloché patterns. An irregular pentagonal structure defines its silhouette: clean lines, sharp boundaries, and an unyielding industrial aesthetic.

The Acoustic Engine

At the heart of the E1000 lies a 10.2mm full-range dynamic driver, powered by a dual-neodymium magnetic circuit generating a staggering 9000 Gauss flux density—rivaling Tesla-grade systems. This immense power grants the E1000 effortless control and explosive transience.

Using Physical Vacuum Direct Current Magnetron Sputtering, we deposit over 80 layers of titanium onto the diaphragm. This creates a surface that is incredibly light yet rigidly distinct, capturing the finest overtones while stabilising ultra-high frequency energy.

Acting as a "tuning rudder," the auxiliary passive radiator controls the waveform trajectory of low frequencies. It ensures bass that is deep and powerful, yet clean and elastic—never muddy, always breathing.
