[Pre-order] Woo Audio WA33 Fully-balanced Headphone Amplifier / Preamplifier

$27,888.00

Pre-Order only. Ships in 8 weeks.

1 Year Local Singapore Warranty.

Comments and Reviews

Screen Shot 2018-02-21 at 5.55.27 PM.png

Overview

In 2009, we introduced two world-class fully balanced headphone amplifiers––the WES electrostatic amp and the WA22 dynamic amp. Both are preferred choices among the most discerning audiophiles. Here at Woo Audio, we constantly push the performance boundaries. The newly developed WA33 is a state-of-the-art, fully balanced headphone amplifier that raises the bar in setting a new reference in music reproduction.

The WA33 employs a true fully balanced design in a compact form factor, featuring a quad (four) of 6C45 tubes for the driver that pushes a quad (four) of 2A3 tubes for the power, and all in direct-heated triodes. It delivers high power to drive demanding headphones to their full potential while maintaining a low noise floor for use with highly sensitive models. The WA33 shares the same striking appearance of the critically acclaimed WES, where both amplifier units are independent of the power supply. This approach eliminates any interference to critical audio components. Additionally, our internal coupling architecture (ICA) technology allows the WA33 amplifier to merge with the power supply unit without an external umbilical cord. The ICA shortens the signal path and thus significantly reduces unwanted electrical interference and raises sound performance to a level beyond what anyone has previously experienced in a headphone system.

The WA33 reveals the most delicate detail with the highest level of refinement. Complex music passages are handled with ease and authority. The expansive soundstage, holographic imaging, and rich tones that are pristine, natural, and vivid create a sense of realism that gives the user a euphoric listening experience. With the WA33, music comes to life.

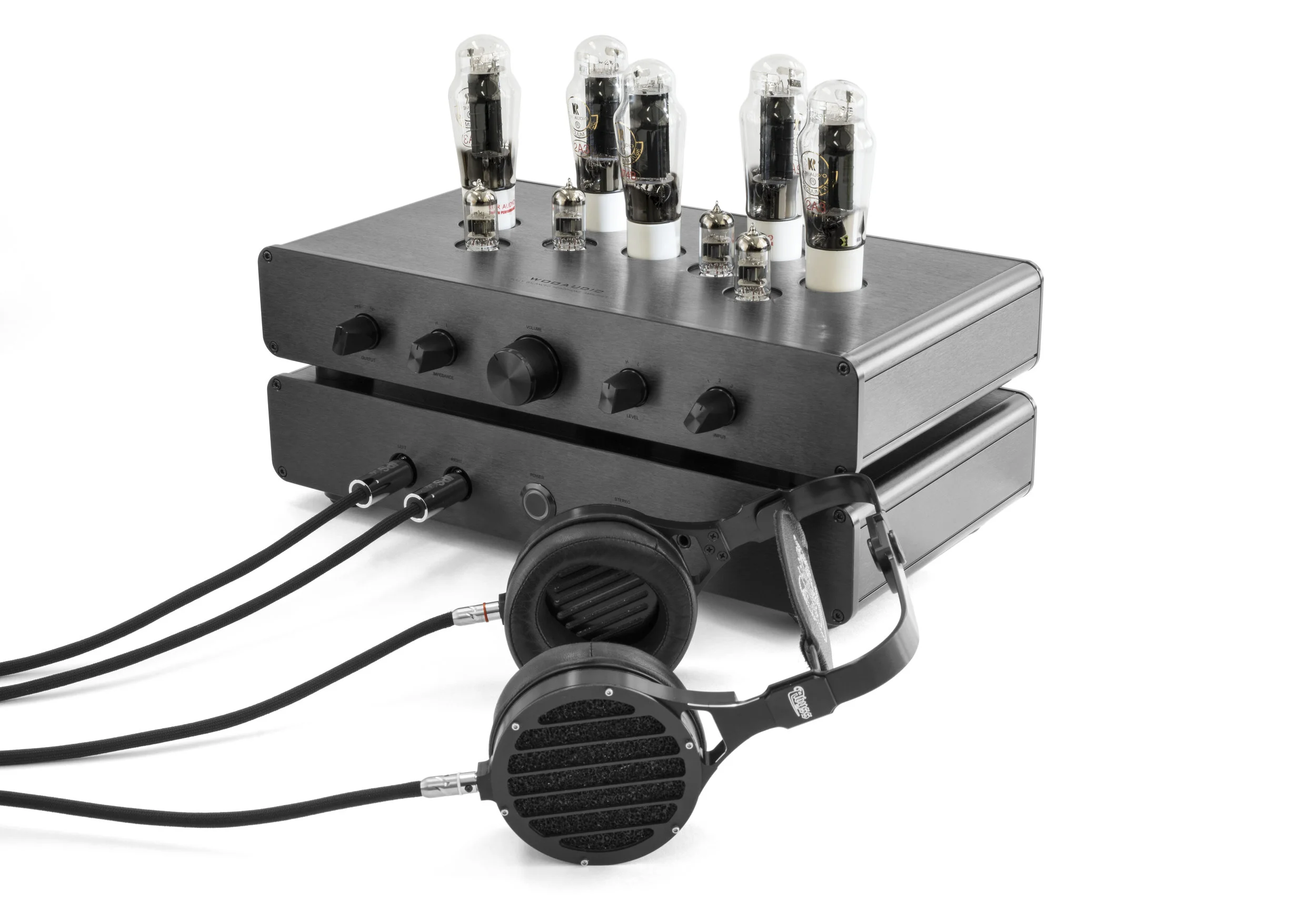

WA33 with upgrade tubes shown. Abyss AB-1266 headphones sold seperately.

Same default tubes for all versions: 6C45 driver x 4, 2A3 power x 4, 5U4G rectifier x 1
[JPS wiring] JPS Alumiloy® hook-up and signal wires are used throughout.
Fully balanced design, Push Pull, Class-A
Polytetrafluoroethylene (PTFE) tube sockets
TKD (Tokyo Ko-on Denpa) 4-channel balanced smooth potentiometer
Transformer-coupled, Point-to-Point wiring
Internal Coupling Architecture (ICA)

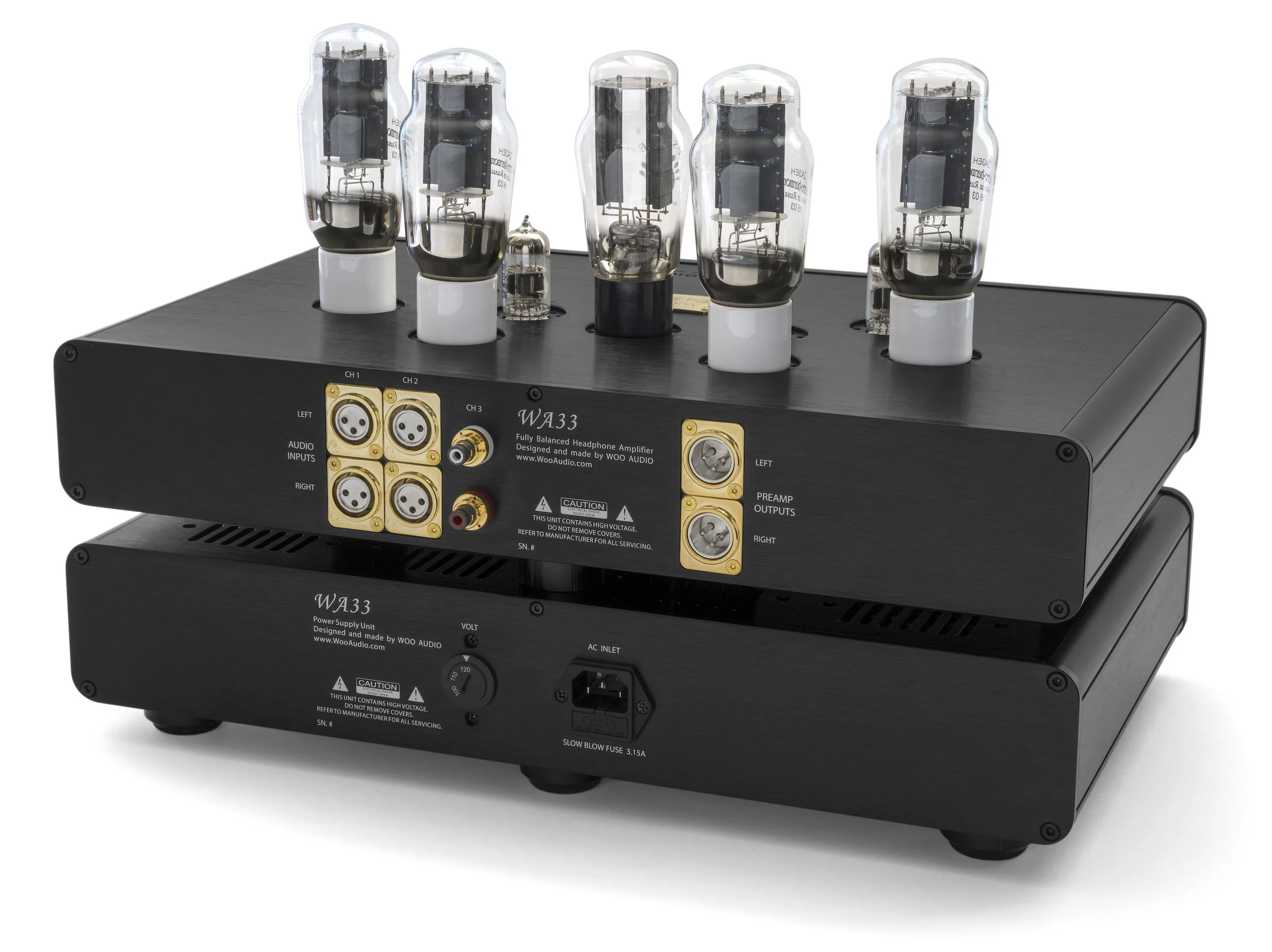

XLR input x 2, RCA input x 1
Outputs: Dual 3-pin XLR (left and right channel), 4-pin XLR x 1 and 1/4" (6.3mm), XLR x 1 preamp
User selectable output: pre-amp or headphone
User selectable HI/LO impedance and HI/LO level for headphone
Headphones impedance: 8—600 Ohms
Frequency response: 10Hz— 60kHz, -2dB
Power output: up to 10 watts per channel @32 Ohms
Signal/Noise: > 95 dB, THD: < 0.05%, 1kHz
Anodized aluminum chassis, available in black or silver
Self-biasing with compatible tubes
Power consumption: 150w
Voltage: AC 100 - 120V 60HZ or AC220 - 240V, 50HZ, voltage built to destination country
Dimensions: 17.5"(W), 12"(D), 7.5"(H) without tubes, weight: 53 lbs for Standard, 56 lbs for Elite Edition
Designed and assembled in New York, USA

Elite Edition

The WA33 “Elite Edition” is the result of our further pursuit of unprecedented performance. Our experienced engineers have selected the best internal components and materials from intensive research and development. Elite Edition embodies a harmonious balance between sophisticated design and technological excellence to satisfy the most demanding music lovers.

Highlights

Elite Edition Adds:

Ultra high-bandwidth, low-loss output transformers custom-made with Single Crystal Copper wires and Ni Alloy metal
Single Crystal copper hook-up and signal wires are used throughout.
[JPS wiring] JPS Alumiloy® hook-up and signal wires are used throughout.
ALPS RK50 4-channel balanced potentiometer in brass enclosure
Mundorf MCap Supreme Silver/Gold capacitor for interstage coupling, one per channel (4pcs)
Mundorf MTube capacitors for voltage filter (3pcs)

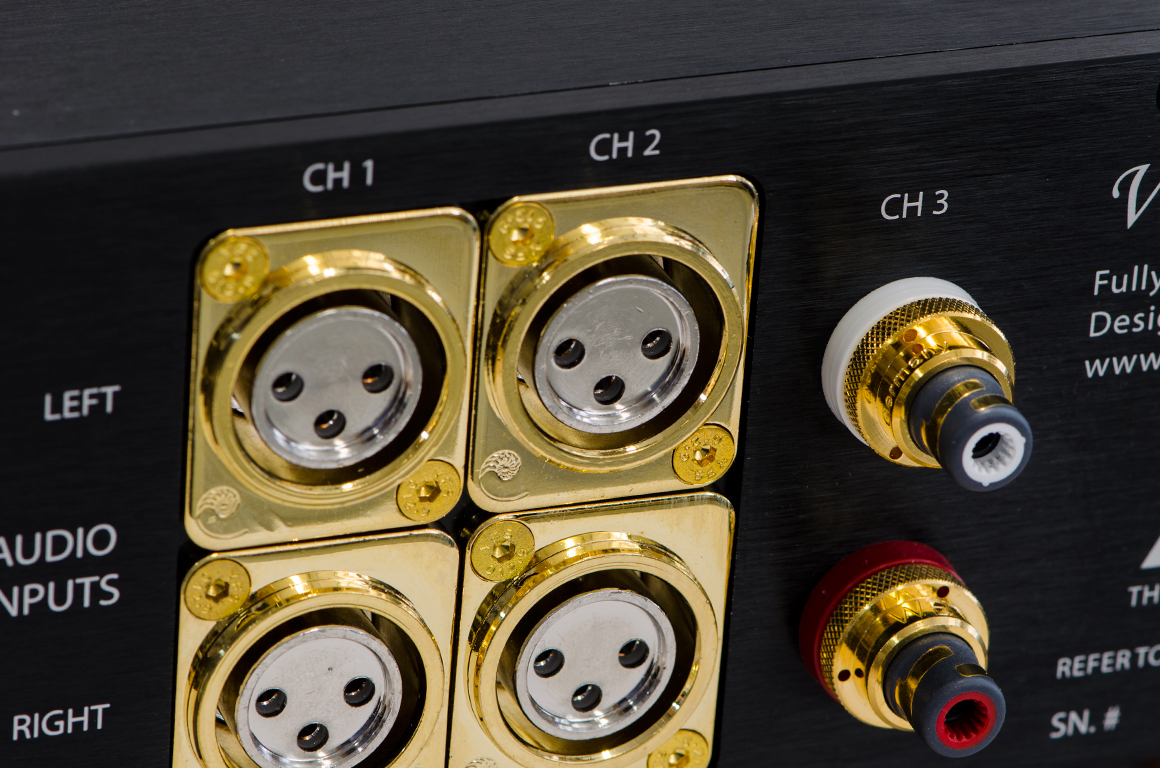

Cardas Audio XLR and WBT RCA connectors

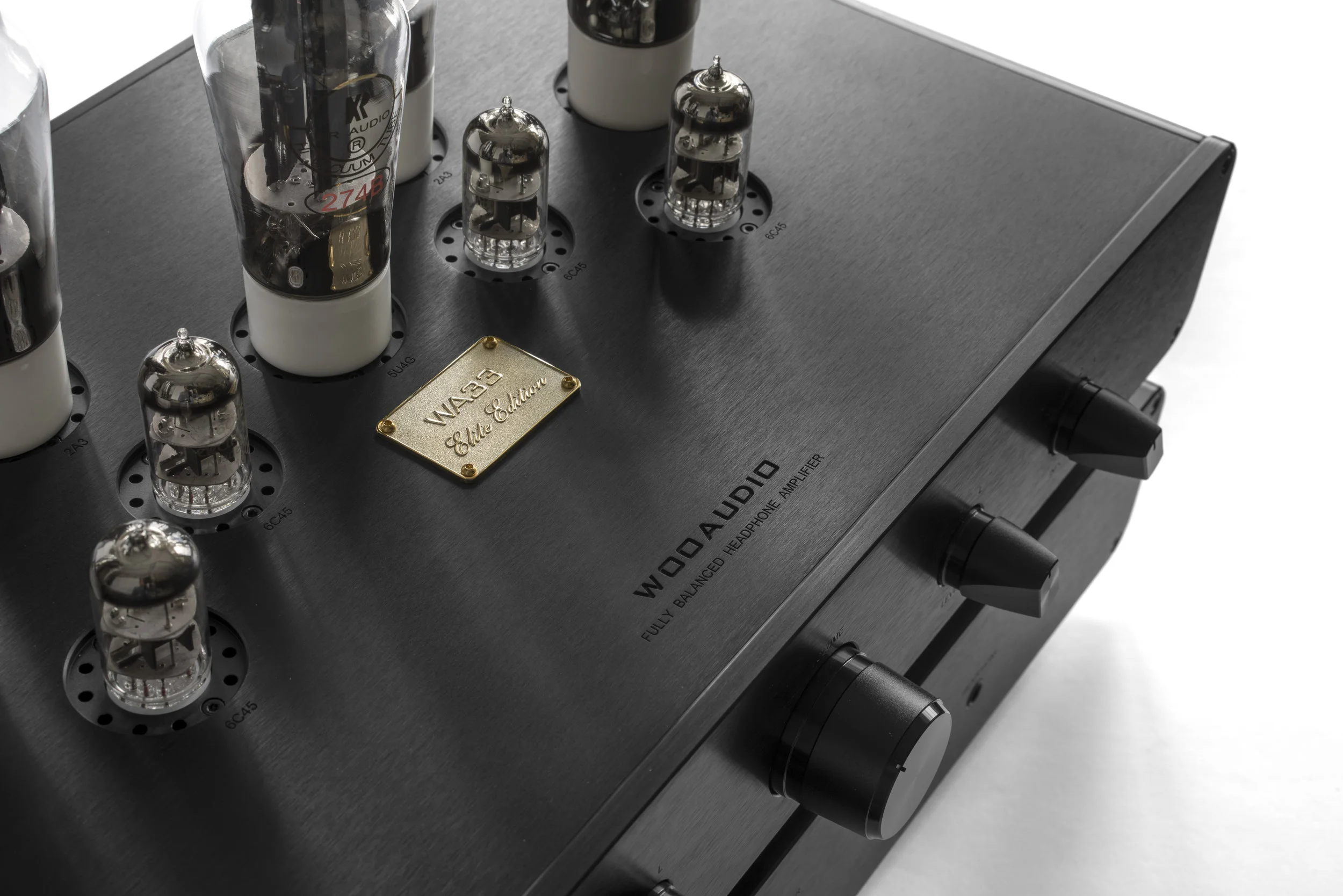

WA33 Elite Edition 24k gold-plated plaque

*Specifications and appearance are subject to change for improvement without notice.

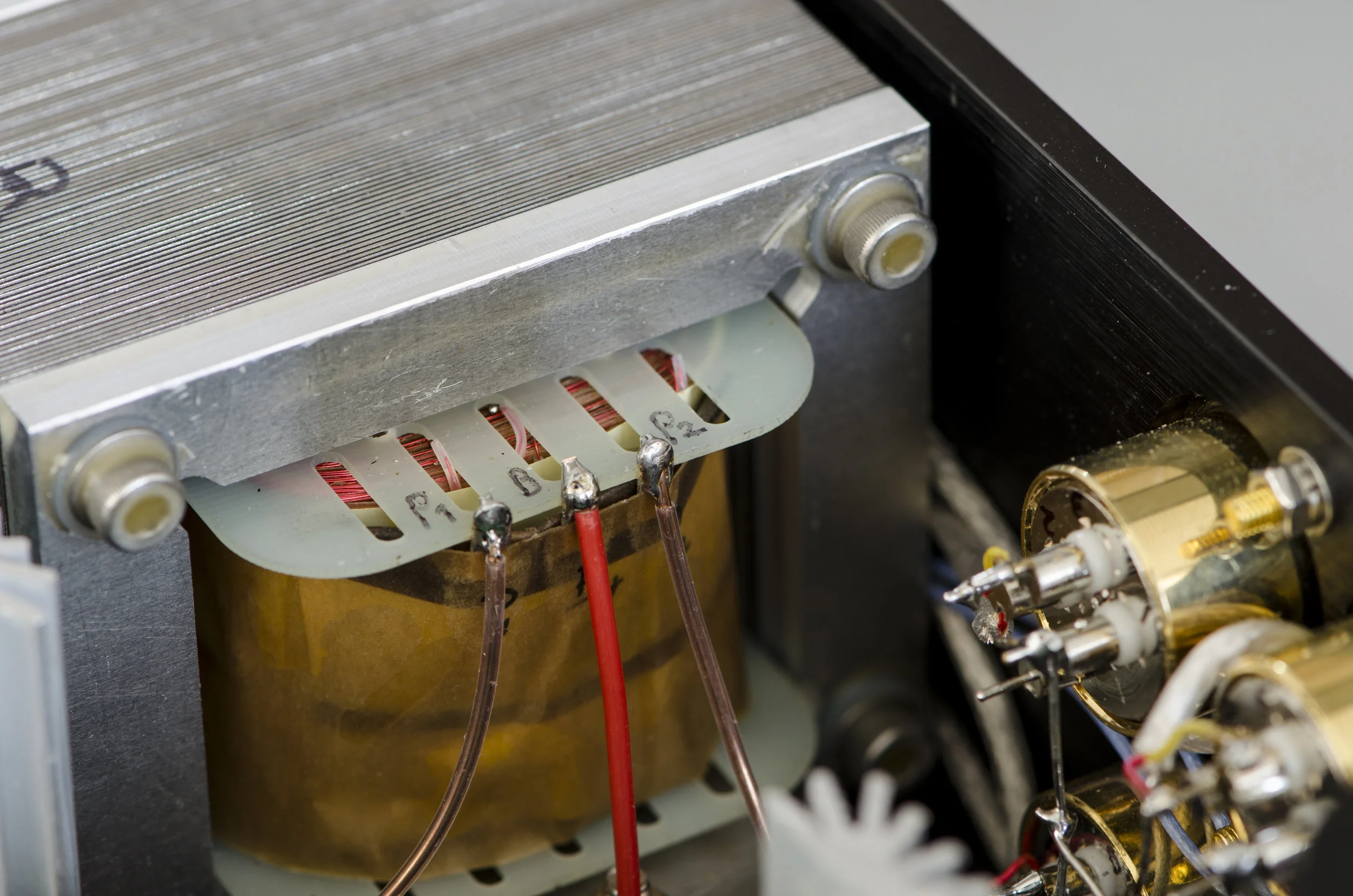

Ultra high-bandwidth, low-loss output transformers custom-made with Single Crystal Copper wires and Ni Alloy metal

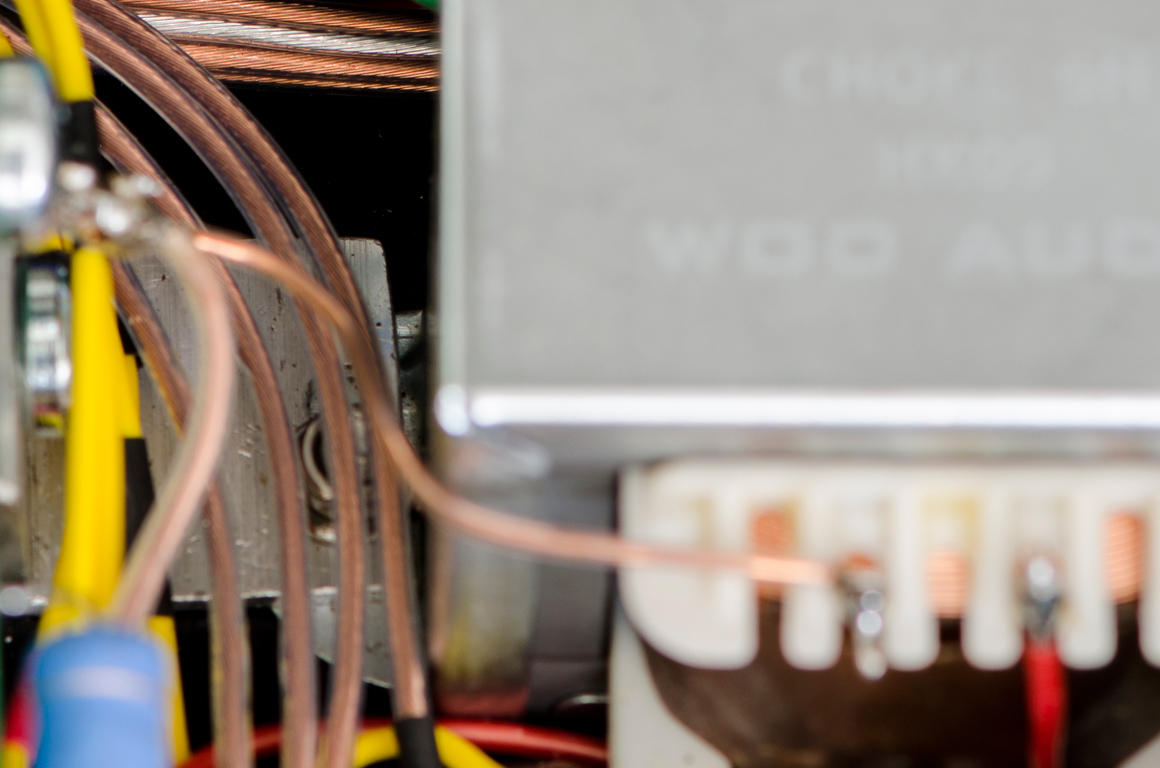

Single Crystal copper hook-up wires throughout.

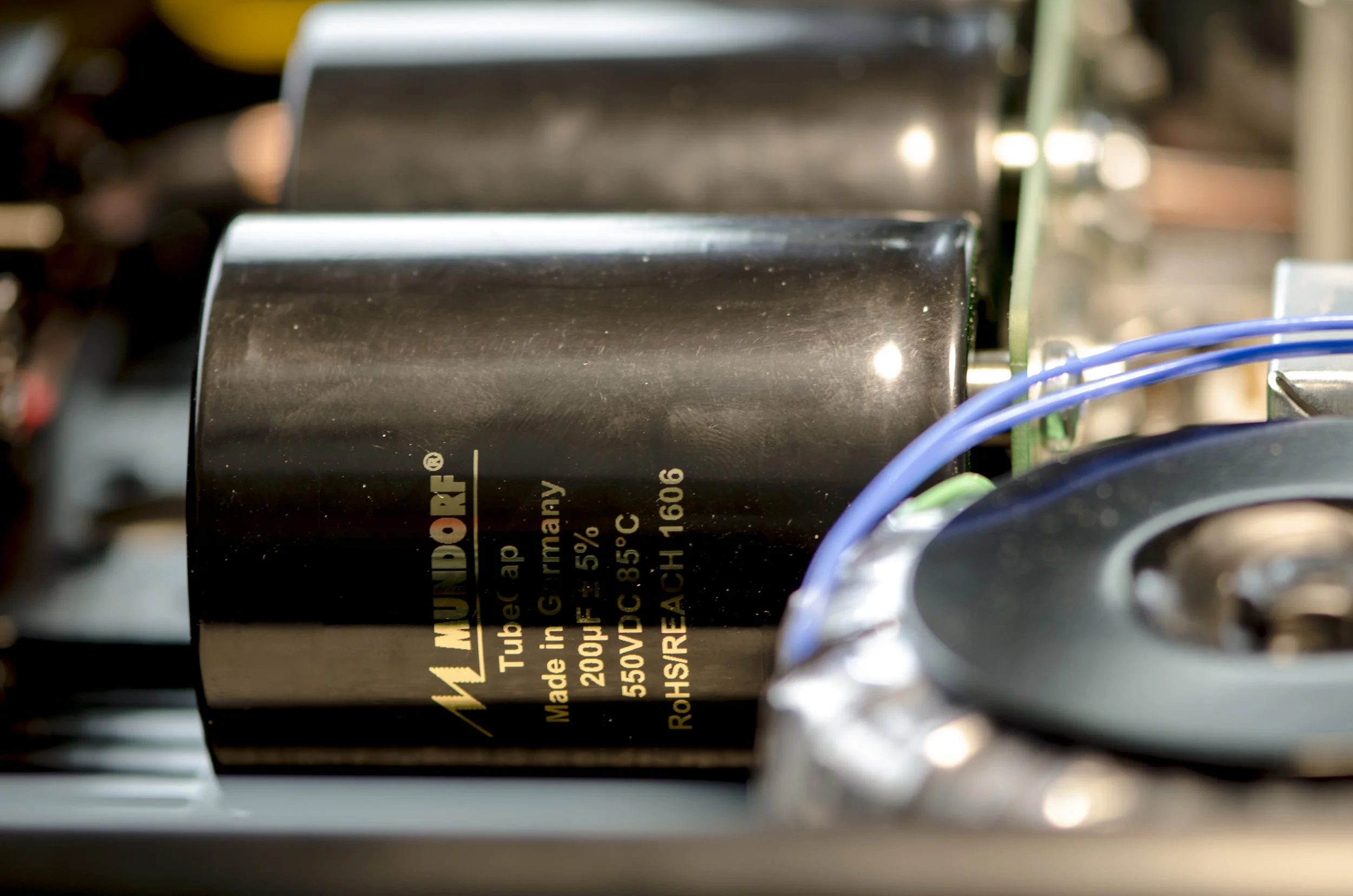

Mundorf MTube capacitors for voltage filter

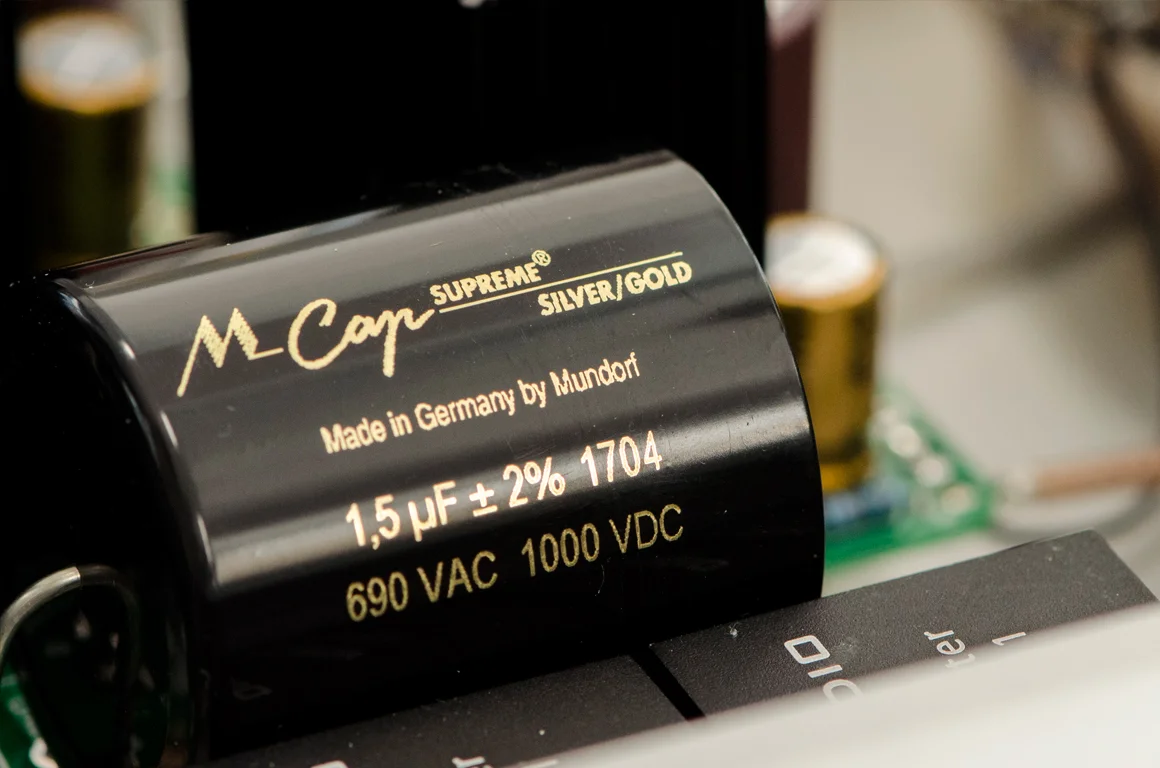

Mundorf MCap Supreme Silver/Gold capacitor for interstage coupling

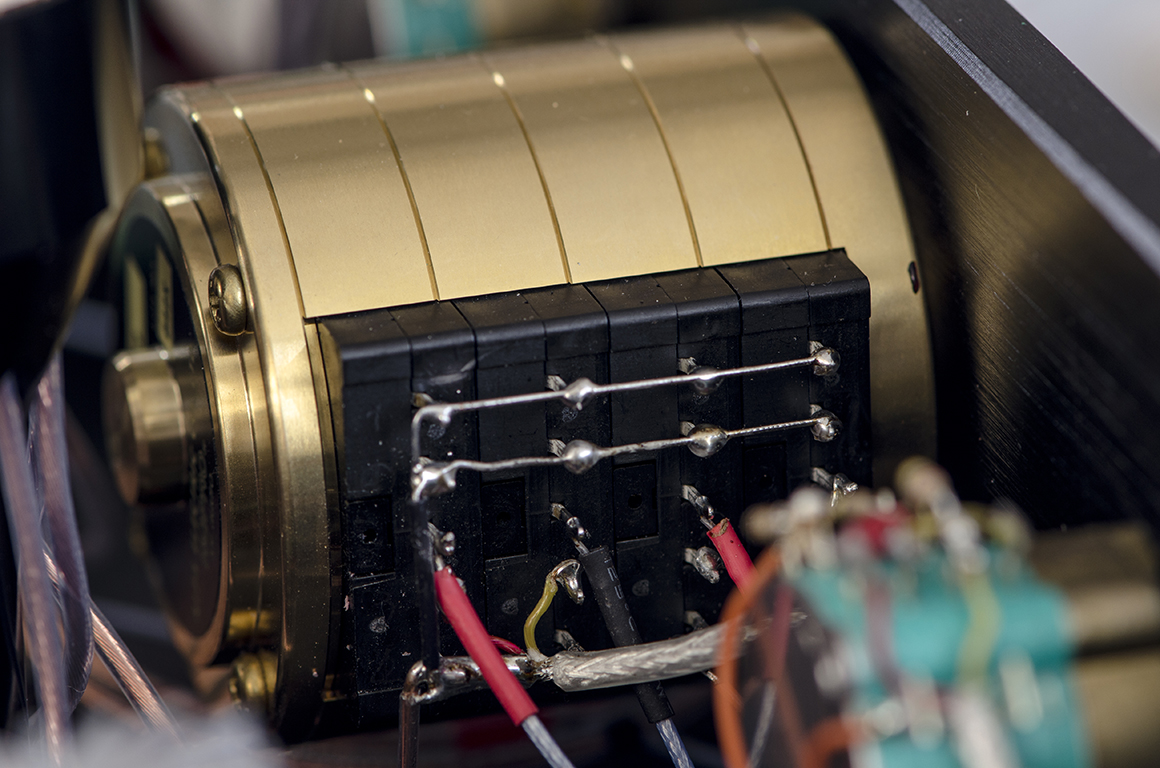

Alps RK50 4-channel volume control in brass enclosure

In the box

Quick start guide
WA33 or WA33 Elite Edition x 1
Default tubes are same for all versions
2A3 tube x 4
274B tube x 1
6C45 tube x 4

*AC power cord and audio cables are not included
