R-2R DAC

• Proprietary R2R + DSD Architecture
• True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
• Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors
• FEMTO Crystal 45.1548MHz, 49.152Mhz

Key Features

• Custom Gold-plated RCA Jacks
• Low Noise Power Supply
• Digital Signal Processing via FPGA
• Adaptive FIFO Buffer and Reclocking
• USB inputs support DSD1024. USB supports PCM1536 KHz
• Proprietary USB Audio Solution Based on STM32F446 ARM Cortex-M4 MCU
• Licensed Thesycon USB Driver for Windows Platform
• Driverless On Mac & Linux

DSD

• DSD64 All input
• SD64-DSD1024 USB Only

PCM

• 24bit/44.1, 48, 88.2, 96, 176.4, 192 KHz All Input
• 44.1-1536 KHz USB Only

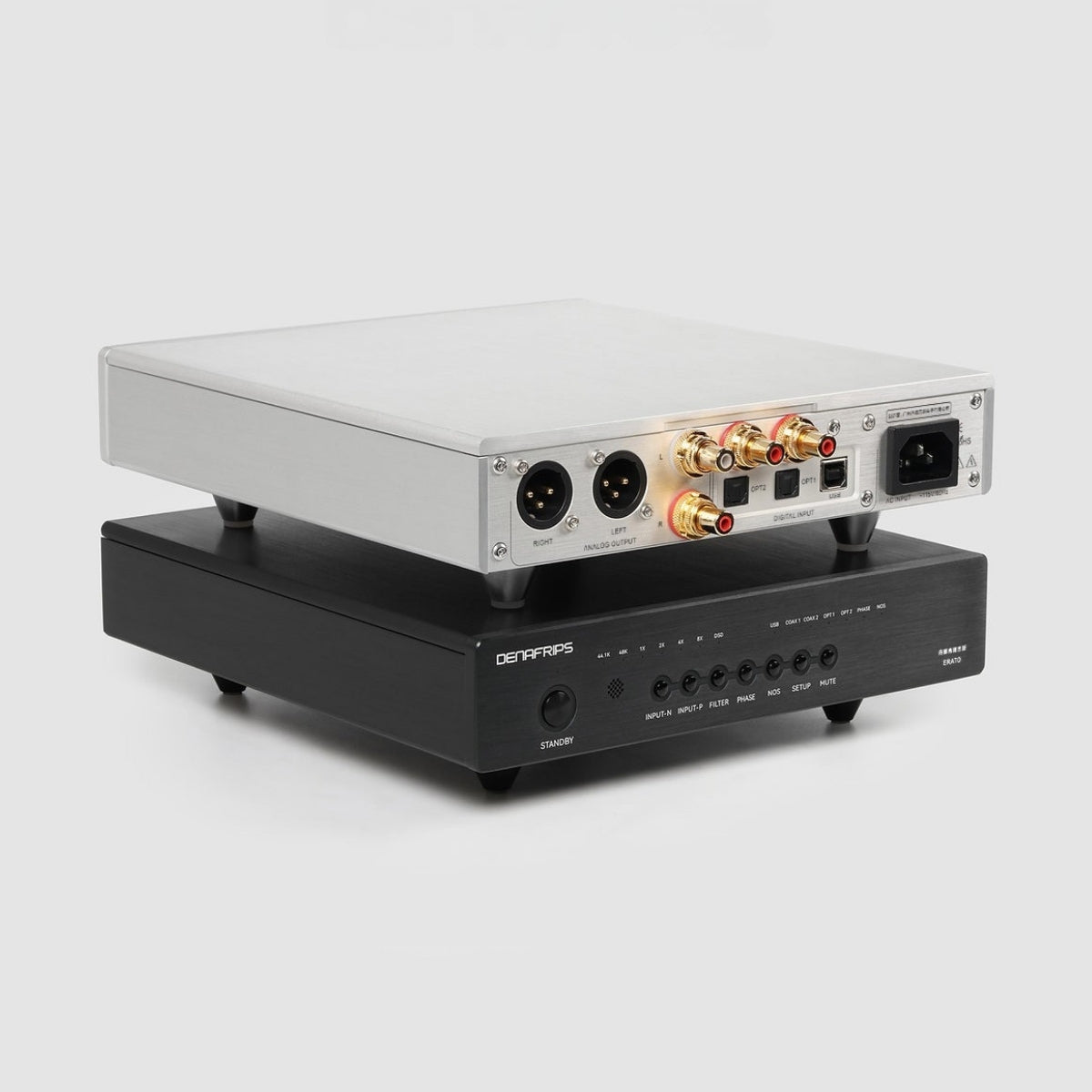

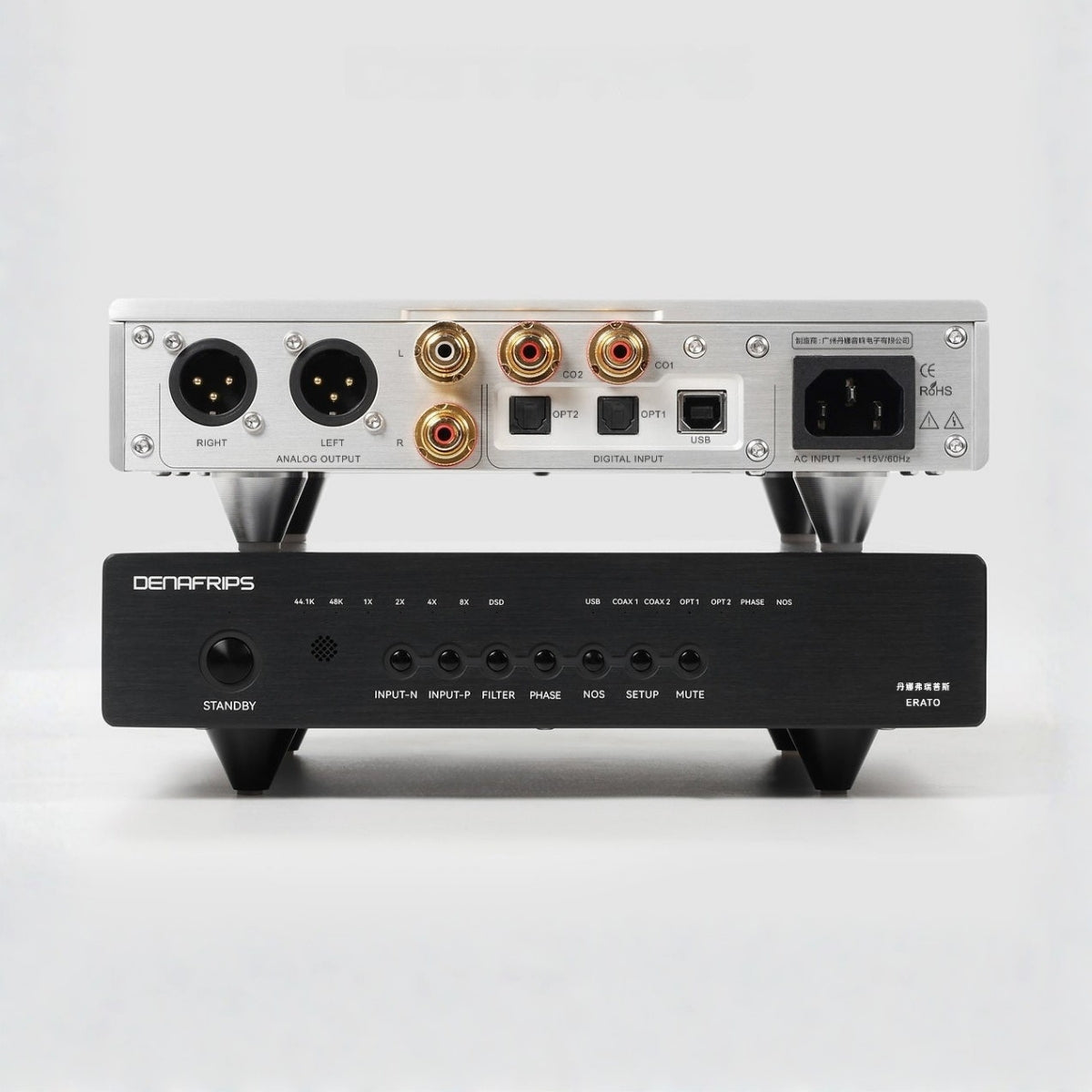

Digital Input

• COAX x 2
• OPT x 2
• USB2.0 Type B

Analogue Output

• RCA: 2.0V RMS, Output Impedance 625Ω
• XLR: 4.0 V RMS, Output Impedance 1250 Ω

Sampling Mode: Non-Oversampling NOS / Oversampling OS

Filter Selection: Slow / Sharp

AC Power Requirement: 115V/60Hz or 230V/50Hz

Power Consumption: ≤20W

Frequency Response: 20-70KHz (+1/-3dB)

Level and Gain: 4.46V RMS@0dBFS

THD+N: ≤0.003%(A)

S/N Ratio: ≥119dB(A)

Dynamic Range: ≥119dB

Stereo Crosstalk: ≤-87dB

Dimension: 220mm x 255mm x 65mm

Weight: 3.2 Kg

Package Content: Includes only the ERATO R-2R DAC and power cable.
