Featuring a new-generation circuit architecture, enhanced with flagship-level technology, the system achieves deep and accurate sound reproduction.
- Multifunctional Hi-Fi Digital & Analogue Source
- OCXO FIFO Buffer & Reclocking
- Direct FPGA Signal Processing Optimised Critical Circuitry
- 32-bit/192kHz DSD1024 True NOS

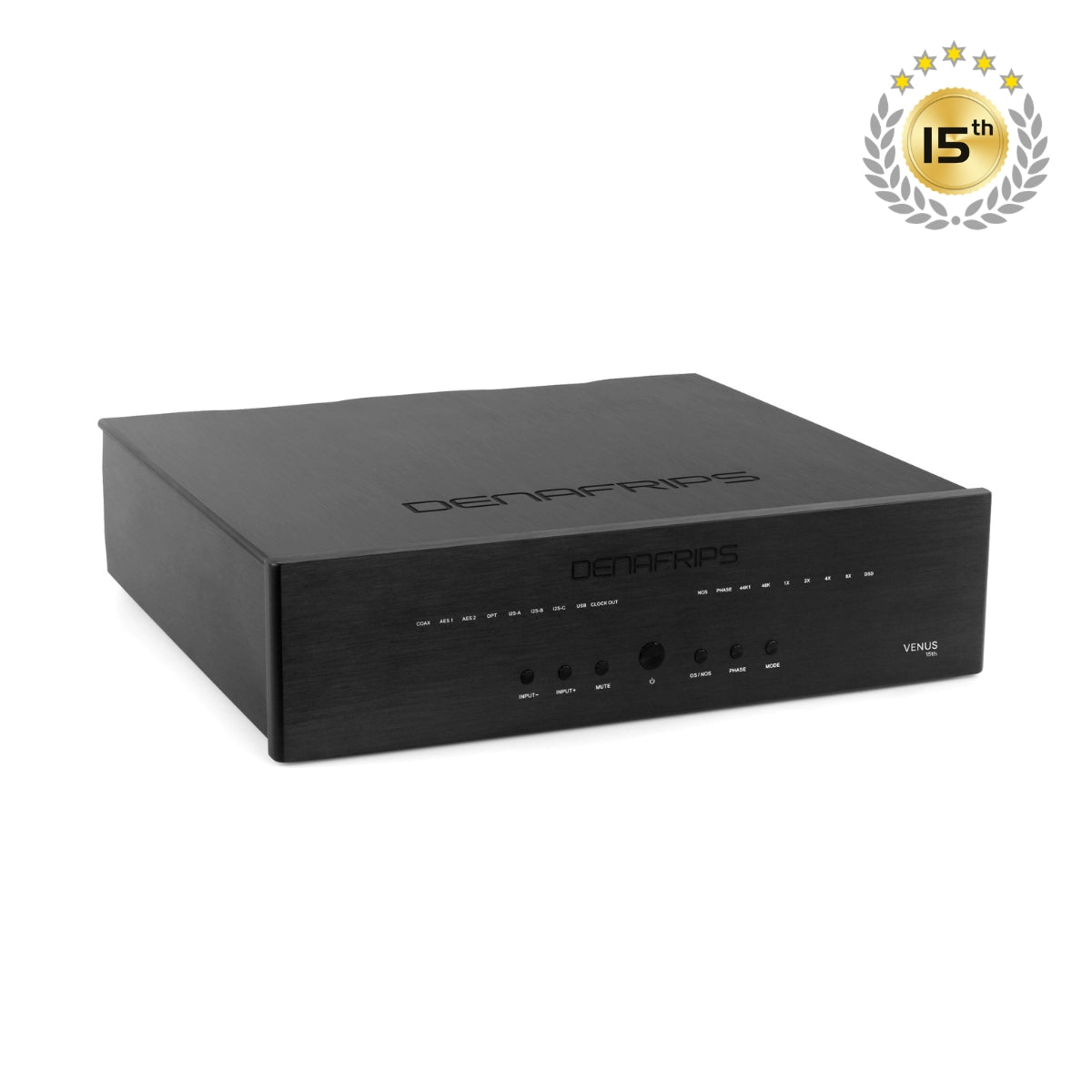

- Venus 15th Transformer Display
1. Terminator-level exterior and comprehensive interfaces, featuring an added RJ5 network input and clock output functionality.
2. All-brand-new circuit design at the Terminator level delivers an unparalleled sound experience.
3. Enhanced power supply support with a gold-silver-copper alloy O-core transformer ensures stable power delivery and pure sound quality.
4. Incorporating high-precision, low-jitter AT-cut oven-controlled crystal oscillators for precise audio signal processing, reducing signal distortion, and significantly improving signal stability and resolution.
Exquisite and Minimalist DAC Design
Equipped with a high-precision audio clock output interface, paired with audio devices featuring external clock input, offering audiophiles a more advanced synchronised clock system for enhanced performance.
VENUS 15th And VENUS 12th Transformer Comparison
Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable reliable, and pure power source
The VENUS 12th uses two 80W single-crystal copper transformers, while the VENUS 15th now uses one 80W and one 250W single-crystal copper transformer, which results in superior sound quality for the VENUS 15th.
OCXO FIFO Buffer & Reclocking
High-End Custom Rhodium-Plated Power Terminal
SPECIFICATIONS
R-2R DAC
Proprietary R2R + DSD Architecture
True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
Matched Precision Thin Film 0.005% R-2R Network Arrays
Highlight
Encapsulated Ultra Low Noise Power Supply
High-end Oven Controlled Crystals OCXO
Total isolation of Digital and R-2R Boards
Adaptive FIFO Buffer and Reclocking
DSD1024, PCM1536 Supports on USB & I²S Input
Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
Licensed Thesycon USB Driver for Windows Platform
Driverless On Mac & Linux
Dual AES/EBU Input Supports
Sharp/Slow Filters Option
I²S Pinout Configuration
I²S DSD Channel Swap Configuration
DSD
DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input
DSD1024 / 45.1584MHz * On USB & I²S Input Only
PCM
24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
1536kHz* On USB & I²S Input
Digital Input
Coax via RCA
TOSLink x 1
AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported)
USB2.0 Type B
I²S via HDMI LVDS
I²S via RJ45 LVDS
I²S via RJ45 LVCMOS
Analogue Output
RCA at 2.2Vrms, 625 Ω
XLR at 4.4Vrms, 1250 Ω
Sampling Mode
Non-Oversampling NOS
Oversampling OS
AC Power Requirement
100-240VAC, 50/60Hz (Worldwide Voltage)
Power Consumption
≤20W
Frequency Response
20-40KHz -0.2dB
THD+N
0.001%
S/N Ratio
127dB
Dynamic Range
>132dB
Stereo Crosstalk
-110dB
Dimension
430 x 380 x 105 mm (without feet)
Weight
19 Kg
