3 Units (1.06m²) / Box

The improved version of Vicoustic's Flagship Wavewood acoustic panel with enhanced performance.

Product Info

Dimensions: 595x595x50mm / 23.4"x23.4"x2" (LxHxW, unit)

Weight: 2.75kg / 6.06lb (Unit)

Raw Materials: Fabric, High-Pressure Laminate (HPL), MDF, VicPET Wool

Fire Rating: Not Available

Functions: Absorption, Diffusion

Acoustic Performance

Absorption Frequency Range: Medium and High Frequencies

NRC: 0.8

αw: 0.8

Class: B

Acoustic Performance Chart:

Installation and Accessories

Placement: Ceiling, Walls

Fixation/Accessories: VicFix Mini (included); VicFix J Profile; VicFix Corner Plus; VicFix Suspension Profile

Unless specified, accessories are sold separately.

Packaging Information

Quantity: 3 Units /Box

Box Dimensions: 665x675x195mm / 26.2"x26.6"x7.7"

Gross Weight: 9.55kg / 21.05lb

Wavewood with enhanced acoustic performance

Vicoustic’s famous VicPattern Ultra Wavewood now features improved acoustic performance.

• The VicPET Wool in the interior of this Wavewood panel was enhanced to a thick layer of 38mm to maximise the acoustic absorbing capabilities of the panel, improving the performance on the Low and Low-Mid Frequencies compared to the previous panel.

• VicPET Wool contributes to Vicoustic’s aim to produce greener and more environmentally friendly products made from recycled plastic.


• The acoustic panel is enclosed in high-quality MDF and High-Pressure Laminate (HPL), durable and easy to clean materials, making it a unique acoustic solution.


• The new generation of Vicoustic’s flagship acoustic panel, VicPattern Ultra Wavewood MKII has a unique outline that improves the room’s acoustic ambience on a perfect marriage between acoustic science and design.

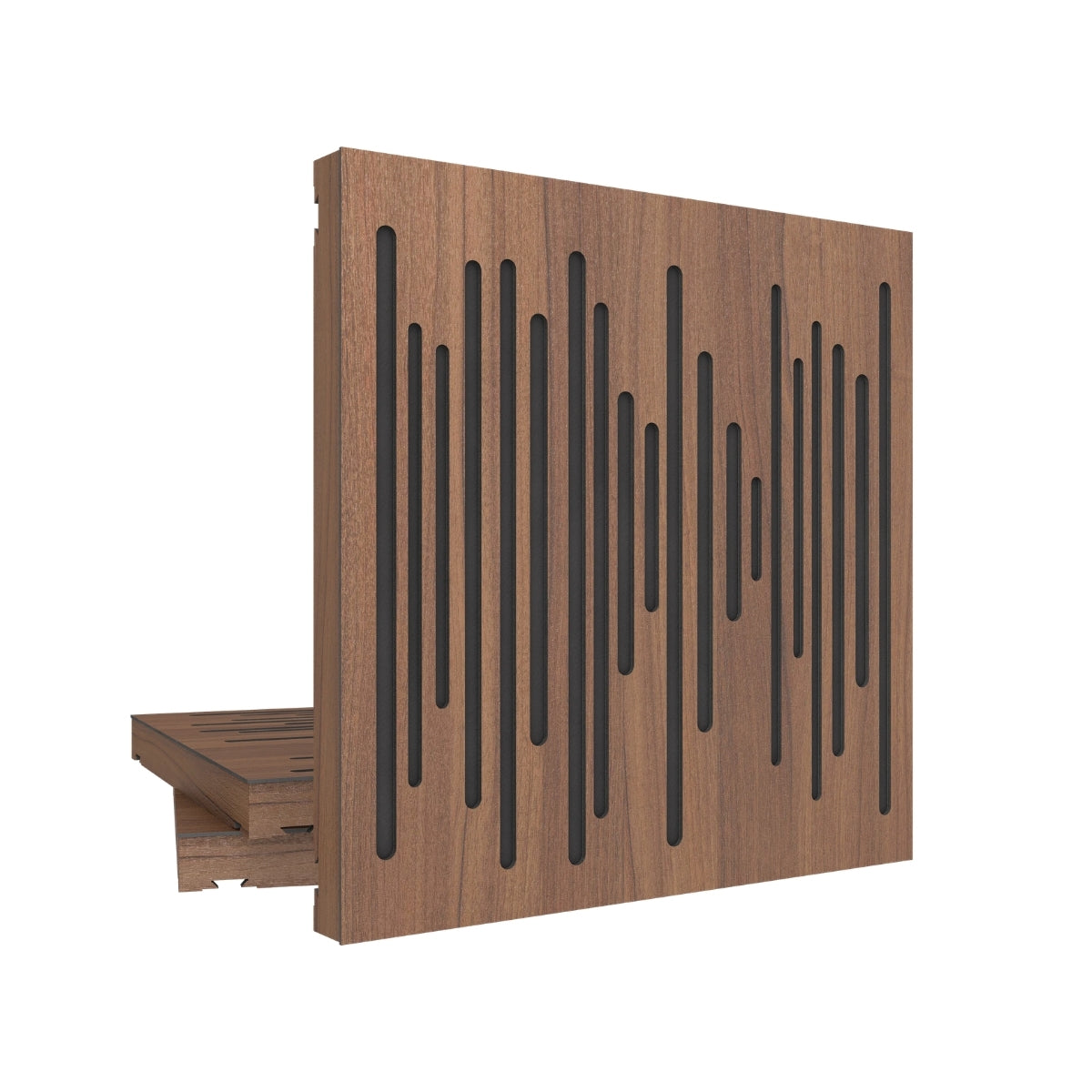

• VicPattern Wavewood is available in 5 wood patterns and 2 matte colours, including the latest Dark Walnut and Natural Walnut.


• Supplied with VicFix Mini for wall installation, this acoustic panel can also be installed on the ceiling with the VicFix J Profile 2m, sold separately. For corner installation, use the VicFix Corner Plus, sold separately. For ceiling installation use VicFix Suspension profile 1190mm, sold separately.


• Both new customers and existing users can upgrade their VicPattern acoustic panel family to the new standard, with the VicPattern Ultra Upgrade Kit, an accessory you can reinforce the performance of your VicPattern Ultra (previous model), with a second layer of PET, placed on the back of the panel.

Absorption and Reflection in one acoustic panel

The VicPattern Ultra Wavewood acoustic panel is one of the leading solutions that Vicoustic offers in terms of the Absorption and Reflection Control System*. This is ideal to those who are striving for a balanced sound that can also, simultaneously, control any noise energy in a room, and still manage and create a living and bright sound in a particular setting.

VicPattern Ultra Wavewood MKII Features:

• Construction with premium MDF and anti-scratch HPL
• Polyurethane free
• Recyclable
• Reinforced packing
• Finish also on the sides
• Removable filling allows to integrate light
• Professional fixation systems

*ARCS - Absorption and Reflection Control System. The ARCS system is Vicoustic’s research model and has been developed to assist in acoustic absorption and diffusion combination solutions. The Wavewood acoustic panel incorporates the research undertaken by our technicians to achieve the optimal balance between the absorption area and the reflecting surface.
